Solid | Iodine | Violet |
Astatine | Black/Metallic [Assumed] | |
Liquid | Bromine | Reddish-Brown |
Gas | Fluorine | Pale Yellow-Brown |
Chlorine | Pale Green |
Fluorine is a chemical element with symbol F and atomic number 9. It is the lightest halogen and exists as a highly toxic pale yellow diatomic gas at standard conditions. As the most electronegative element, it is extremely reactive, as it reacts with almost all other elements, except for helium and neon.

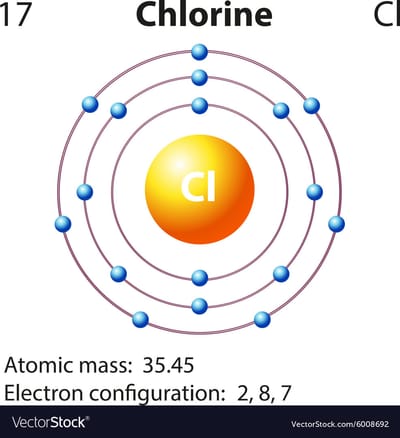

Chlorine is a chemical element with symbol Cl and atomic number 17. Chlorine is a yellow-green gas at room temperature. It is an extremely reactive element and a strong oxidising agent: among the elements, it has the highest electron affinity and the third-highest electronegativity, behind only oxygen and fluorine.
Bromine is a chemical element with symbol Br and atomic number 35. It is a fuming red-brown liquid at room temperature that evaporates readily to form a similarly coloured gas. Isolated independently by two chemists, Carl Jacob Löwig (in 1825) and Antoine Jérôme Balard (in 1826).

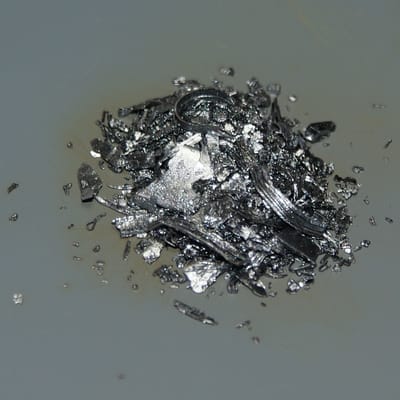

Iodine is a chemical element with symbol I and atomic number 53. The heaviest of the stable halogens, it exists as a lustrous, purple-black non-metallic solid at standard conditions that melts to form a deep violet liquid at 114 degrees Celsius, and boils to a violet gas at 184 degrees Celsius. The element was discovered by the French chemist Bernard Courtois in 1811.
Astatine is a radioactive chemical element with symbol At and atomic number 85. It is the rarest naturally occurring element in the Earth's crust, occurring only as the decay product of various heavier elements. All of astatine's isotopes are short-lived; the most stable is astatine-210, with a half-life of 8.1 hours.
Oxidation State | Compound |
+1 | NaClO |
+3 | NaClO2 |
+5 | NaClO3 |
+7 | NaClO4 |
Appearance | reddish-brown |
Standard atomic weight Ar, std(Br) | [79.901, 79.907] conventional: 79.904 |
Atomic number (Z) | 35 | |||||||||||||||
Group | group 17 (halogens) | |||||||||||||||
Period | period 4 | |||||||||||||||
Block | p-block | |||||||||||||||
Element category | reactive nonmetal | |||||||||||||||
Electron configuration | [Ar] 3d10 4s2 4p5 | |||||||||||||||
Electrons per shell | 2, 8, 18, 7 | |||||||||||||||
Physical properties | ||||||||||||||||
Phase at STP | liquid | |||||||||||||||
Melting point | 265.8 K (−7.2 °C, 19 °F) | |||||||||||||||
Boiling point | 332.0 K (58.8 °C, 137.8 °F) | |||||||||||||||
Density (near r.t.) | Br2, liquid: 3.1028 g/cm3 | |||||||||||||||
Triple point | 265.90 K, 5.8 kPa[1] | |||||||||||||||
Critical point | 588 K, 10.34 MPa[1] | |||||||||||||||
Heat of fusion | (Br2) 10.571 kJ/mol | |||||||||||||||
Heat of vaporisation | (Br2) 29.96 kJ/mol | |||||||||||||||
Molar heat capacity | (Br2) 75.69 J/(mol·K) | |||||||||||||||
Vapour pressure
| ||||||||||||||||
Atomic properties | ||||||||||||||||
Oxidation states | −1, +1, +3, +4, +5, +7 (a strongly acidic oxide) | |||||||||||||||
Electronegativity | Pauling scale: 2.96 | |||||||||||||||
Ionisation energies | 1st: 1139.9 kJ/mol 2nd: 2103 kJ/mol 3rd: 3470 kJ/mol | |||||||||||||||
Atomic radius | empirical: 120 pm | |||||||||||||||
Covalent radius | 120±3 pm | |||||||||||||||
Van der Waals radius | 185 pm | |||||||||||||||
Spectral lines of bromine | ||||||||||||||||
Other properties | ||||||||||||||||
Natural occurrence | primordial | |||||||||||||||
Crystal structure | orthorhombic | |||||||||||||||
Speed of sound | 206 m/s (at 20 °C) | |||||||||||||||
Thermal conductivity | 0.122 W/(m·K) | |||||||||||||||
Electrical resistivity | 7.8×1010 Ω·m (at 20 °C) | |||||||||||||||
Magnetic ordering | diamagnetic[2] | |||||||||||||||
Magnetic susceptibility | −56.4·10−6 cm3/mol[3] | |||||||||||||||
CAS Number | 7726-95-6 | |||||||||||||||
History | ||||||||||||||||
Discovery and first isolation | Antoine Jérôme Balard and Carl Jacob Löwig (1825) | |||||||||||||||
Main isotopes of bromine | ||||||||||||||||
| ||||||||||||||||
Hunsdiecker reaction | |
Named after | Heinz Hunsdiecker Cläre Hunsdiecker Alexander Borodin |
Reaction type | Substitution reaction |
Identifiers | |
Organic Chemistry Portal | hunsdiecker-reaction |
RSC ontology ID | RXNO:0000106 |
Reactions with water |
Iodine reacts with water to produce hypoiolite, OI-. The pH of the solution determines the position of the equilibrium. |
I2(l) + H2O(l)![]() |
Reactions with air |
Iodine is not reactive towards with oxygen or nitrogen. However, iodine does react with ozone, O3 to form the unstable yellow I4O9. |
Reactions with halogens |
Iodine reacts with fluorine at room temperature to form the iodine(V) pentafluoride. At 250°C the same reaction yields iodine(VII) heptafluoride. With careful control of the reaction conditions, (-45°C, suspension of CFCl3), it is posible to isolate the iodine(III) fluoride. |
I2(s) + 5F2(g)![]() |
I2(s) + 7F2(g)![]() |
I2(s) + 3F2(g)![]() |
Iodine reacts with bromine to form the very unstable interhalogen species iodine(I) bromide. |
I2(s) + Br2(l)![]() |
Iodine reacts with chlorine at -80°C with excess liquid chlorine to form iodine (III) chloride. |
I2(s) + 3Cl2(l)![]() |
Iodine reacts with chlorine in the presence of water to form iodic acid. |
I2(s) + 6H2O(l) + 5Cl2(g)![]() |
Reactions with acids |
Iodine reacts with hot concentrated nitric acid to form iodic acid. The iodic acid crystallizes out on cooling. |
3I2(s) + 10HNO3(aq)![]() |
Reactions with bases |
Iodine reacts with hot aqueous alkali to produce iodate, IO3-. Only one sixth of the total iodine is converted in this reaction. |
3I2(g) + 6OH-(aq)![]() |
Physical properties | |||||||||||||||||||||||||||
Phase at STP | solid | ||||||||||||||||||||||||||
Melting point | 575 K (302 °C, 576 °F) | ||||||||||||||||||||||||||
Boiling point | 610 K (337 °C, 639 °F) | ||||||||||||||||||||||||||
Density (near r.t.) | (At2) 6.35±0.15 g/cm3(predicted) | ||||||||||||||||||||||||||
Molar volume | (At2) 32.94 cm3/mol (predicted) | ||||||||||||||||||||||||||
Heat of vaporization | (At2) 54.39 kJ/mol | ||||||||||||||||||||||||||
Vapor pressure
| |||||||||||||||||||||||||||
Atomic properties | |||||||||||||||||||||||||||
Oxidation states | −1, +1, +3, +5, +7 | ||||||||||||||||||||||||||
Electronegativity | Pauling scale: 2.2 | ||||||||||||||||||||||||||
Ionization energies | 1st: 899.003 kJ/mol | ||||||||||||||||||||||||||
Covalent radius | 150 pm | ||||||||||||||||||||||||||
Van der Waals radius | 202 pm | ||||||||||||||||||||||||||
Other properties | |||||||||||||||||||||||||||
Natural occurrence | from decay | ||||||||||||||||||||||||||
Crystal structure | face-centered cubic (fcc) (predicted) | ||||||||||||||||||||||||||
Thermal conductivity | 1.7 W/(m·K) | ||||||||||||||||||||||||||
CAS Number | 7440-68-8 | ||||||||||||||||||||||||||
History | |||||||||||||||||||||||||||
Naming | after Greek astatos, meaning "unstable" | ||||||||||||||||||||||||||
Discovery | Dale R. Corson, Kenneth Ross MacKenzie, Emilio Segrè (1940) | ||||||||||||||||||||||||||
Main isotopes of astatine | |||||||||||||||||||||||||||
|
Reaction[m] | Energy of alpha particle |
209Bi83 + 4He2 → 211At85 + 2 n10 | 26 MeV |
209Bi 83 + 4He2 → 210At85 + 3 n10 | 40 MeV |
209Bi83 + 4He2 → 209At85 + 4 n10 | 60 MeV |
